SERIES NAMUR
NAMUR solenoid valve 5/2 – G1/4”
Electrovalve suitable for the control of single- and double-acting pneumatic rotary actuators used in industrial plants for?the distribution of the fluids
| Body | die-cast Zamak |
| Working pressure | 2÷10 bar |
| Ambient temperature | ?-10 + 45°C |
| Fluid | filtered air 50 μm |
| Fluid temperature | ?-10 + 50°C |
| Nominal diameter | 8 mm G ? |
| Rated capacity? | 1200 Nl/min |
| Switching system | mixed |
| Response time | 5÷30 m/s |
| Coils | DA series (U1) – DC series (U3) |

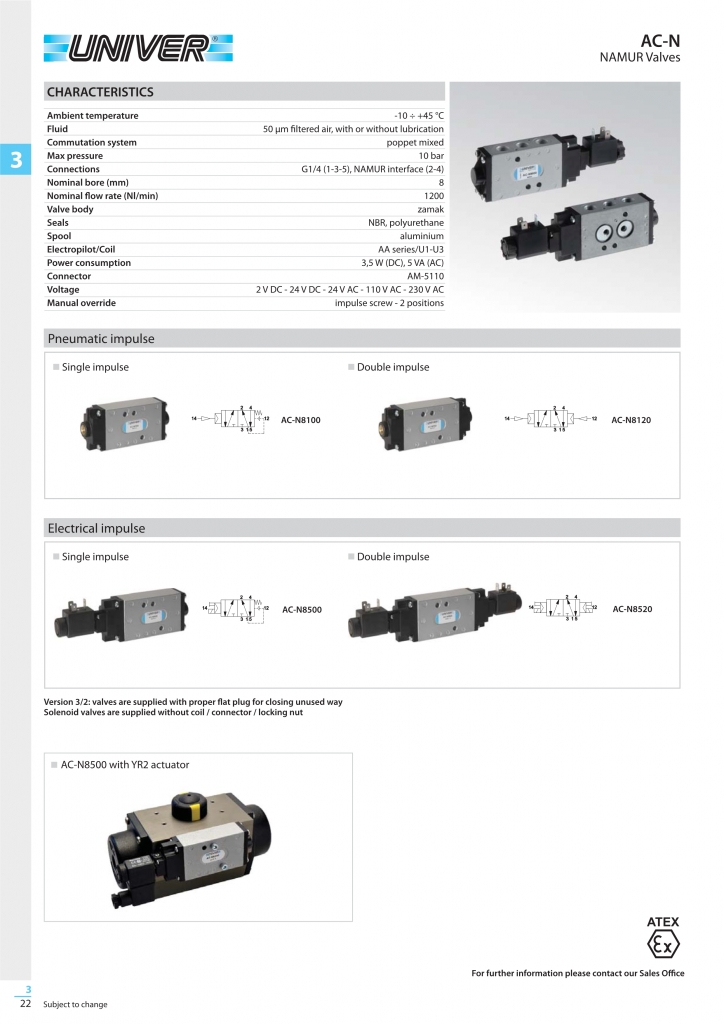

UNIVER板式電磁閥部分常規(guī)型號參考：AC-N8100 , AC-N8120 , AC-N8500 , AC-N8520
