JET and miniature pneumatic limit switches 2/2 – 3/2
UNIVER JET pneumatic switches have been designed to meet the ever increasing need to save space without compromising on performance or reliability. Available in two port options, M5 threaded, or quick couplings ? (4 x 2) for quick assembly porposes.
The limit-switches, mounted on sub-bases with threaded connections or with quick couplings, may be combined with different types of manual operators for panel mounting complying with the various needs of the plant. It can?also be used as an operator on indirectly operated 3 and 5-port valves where a sensitive control is required.

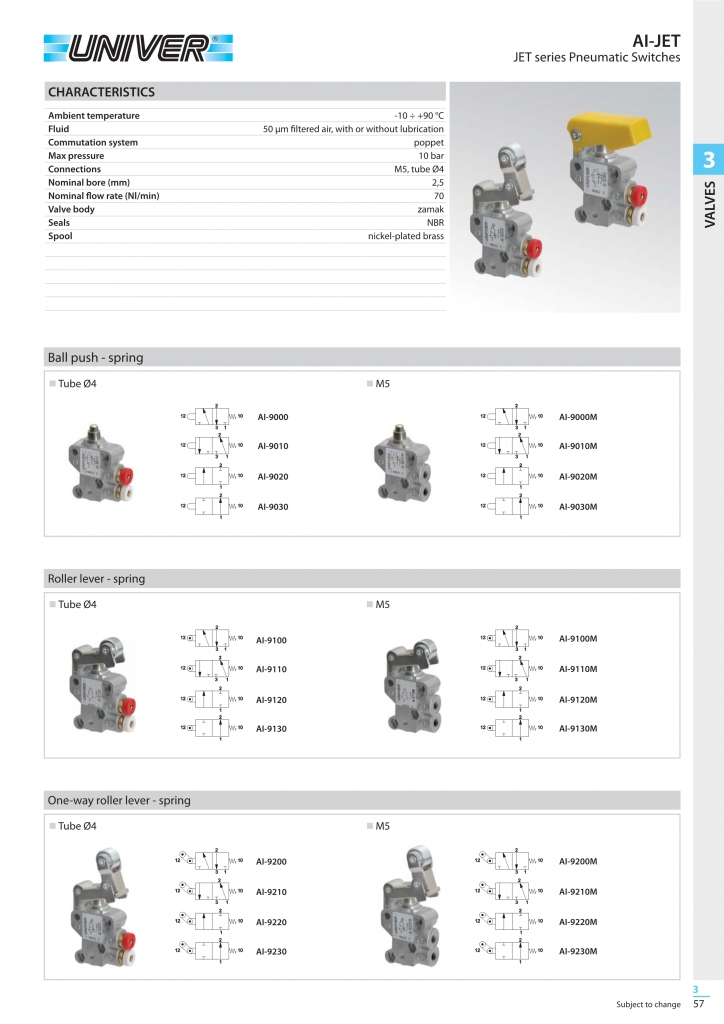

| Body | die-cast alloy |
| Working pressure | max. 10 bar |
| Ambient temperature | -10 ÷ 90 °C |
| Fluid | lubricated or non lubricated air |
| Nominal diameter | 2,5 mm (JET) – 2,3 mm miniature limit switch |
| w | (sensitive type 1,5) |
| Flow rate | 98 Nl/min (JET) – 110 Nl/min |
| wW | (miniaturized limit switch) |
| wW | M5 thread or push-in fittings ? 4×2 pipe (JET) |
| W | Assembly on base (miniaturized limit switch) |

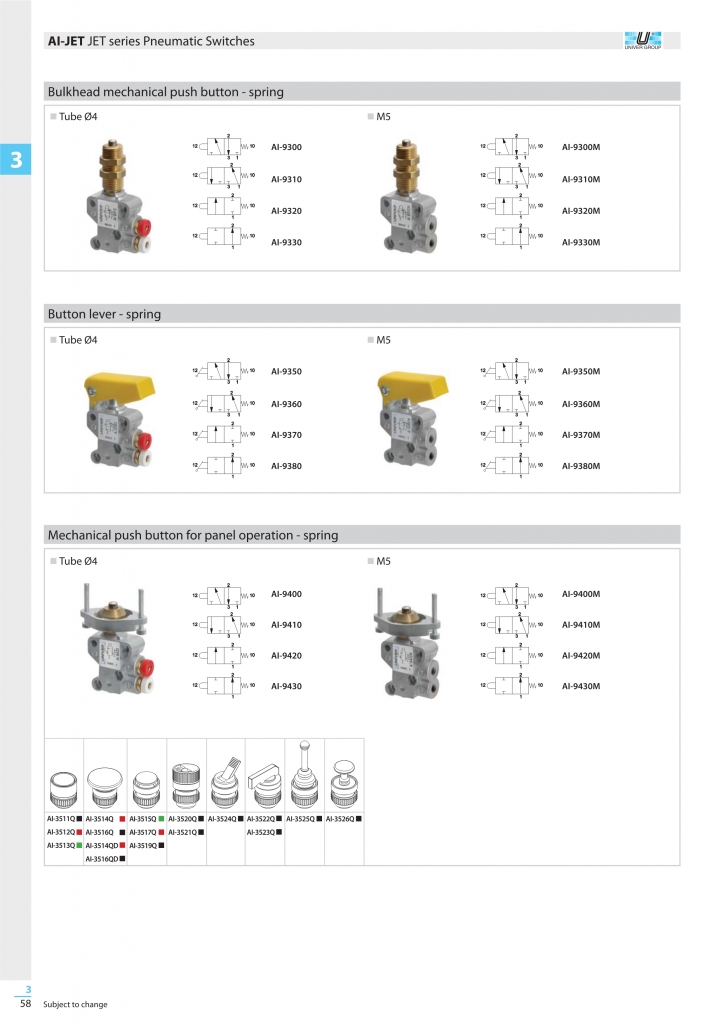

UNIVER微型氣動限位開關部分常規(guī)型號參考：AI-9000 , AI-9010 , AI-9020 , AI-9030 , AI-9000M , AI-9010M , AI-9020M , AI-9030M , AI-9100 , AI-9110 , AI-9120 , AI-9130 , AI-9100M , AI-9110M , AI-9120M , AI-9130M , AI-9200 , AI-9210 , AI-9220 , AI-9230 , AI-9200M , AI-9210M , AI-9220M , AI-9230M , AI-9300 , AI-9310 , AI-9320 , AI-9330 , AI-9300M , AI-9310M , AI-9320M , AI-9330M , AI-9350 , AI-9360 , AI-9370 , AI-9380 , AI-9350M , AI-9360M , AI-9370M , AI-9380M , AI-9400 , AI-9410 , AI-9420 , AI-9430 , AI-9400M , AI-9410M , AI-9420M , AI-9430M
