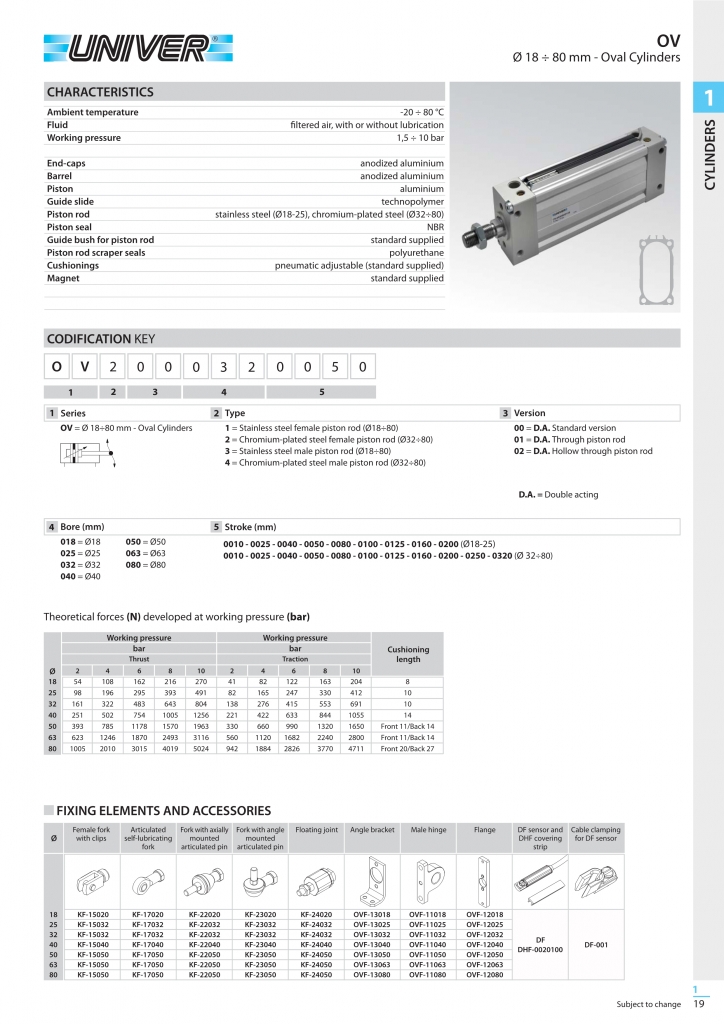

Oval cylinders ? 18-80 mm
Compact oval cylinder with adjustable pneumatic cushioning and standard magnetic version; its special shape?allows the assembly of several coupled cylinders with reduced overall dimensions (in width).
| Working pressure | 1,5÷10 bar |
| Ambient temperature | -20 ÷ 80 °C |
| Fluid | filtered air, lubricated or non lubricated |
| Barrel | aluminium extrusion |
| End-caps | aluminium |
| Fixings | side and front |
| Piston rod | chromium-plated (? 32 ÷ 80 mm) |
| c | ?stainless steel AISI 303?(? 16 ÷ 25 mm) |
| Piston? | aluminium |
| Seals | nitrile rubber |
| c | piston rod seal in polyurethane |
| Magnetic version | ??standard (Magnetic switch DF-… series) |
