首頁 » 產品中心 » 液壓元件 » HYDROMAX新鴻 » HGP-3A
HGP-3A

HGP-3A

提到HYDROMAX齒輪泵，如虹精工(廈門)電子科技有限公司可以了解一下。如虹精工專業銷售新鴻齒輪泵!誠信經營!歡迎咨詢,我們將誠摯為您服務. 如虹精工為您提供最新的HYDROMAX油泵詳細參數、新鴻油泵實時報價、新鴻液壓泵庫存情況等

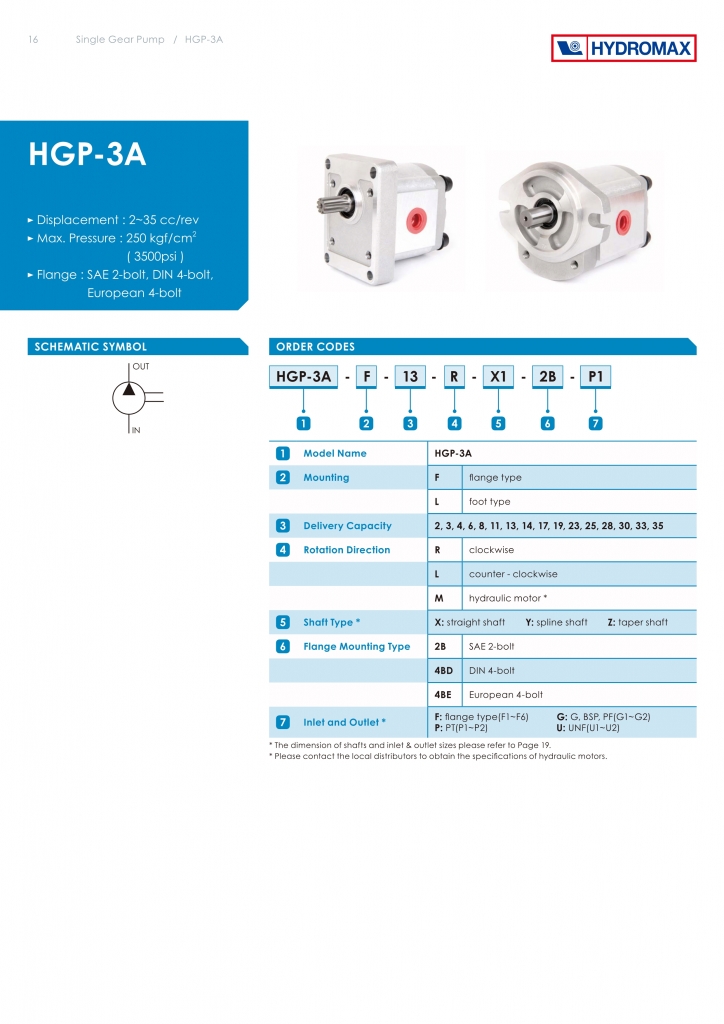

ORDER CODES

Model Name HGP-3A
Mounting F Flange Type
L Foot Type
Delivery Capacity 2,3,4,6,8,11,13,14,17,19,23,25,28,30,33,35
Rotation Direction R Clockwise
L Counter-Clockwise
M Hydraulic Motor
Shaft Type X Straight Shaft
Y Spline Shaft
Z Taper Shaft
Flange Mounting Type 2B SAE 2-bolt
4BD DIN 4-bolt
4BE European 4-bolt
Inlet and Outlet* F flange type(F1~F6)
G G,BSP,PF(G1~G2)
P PT(P1~P2)
U UNF(U1~U2)

SPECIFICATIONS

?
?Model Accurate Pressure (kgf/cm2) Speed (r.p.m) Weight(kg)
Displacement Port Size (PT)
Capacity
(cc/rev) normal Max Rate Max Min Inlet Outlet
HGP-3A-F2R 2 210 1800 4000 700 3/4″ 1/2″ 2.19
HGP-3A-F3R 3 210 1800 4000 700 3/4″ 1/2″ 2.23
HGP-3A-F4R 4 210 1800 4000 700 3/4″ 1/2″ 2.29
HGP-3A-F6R 6 210 1800 4000 700 3/4″ 1/2″ 2.37
HGP-3A-F8R 8.4 210 1800 3500 700 3/4″ 1/2″ 2.45
HGP-3A-F11R 11 210 1800 3000 600 3/4″ 1/2″ 2.6
HGP-3A-F13R 13 210 1800 3000 600 3/4″ 1/2″ 2.7
HGP-3A-F14R 14.3 210 1800 3000 500 3/4″ 1/2″ 2.76
HGP-3A-F17R 16.5 210 1800 3000 500 3/4″ 1/2″ 2.87
HGP-3A-F19R 19.2 210 1800 3000 500 3/4″ 1/2″ 2.99
HGP-3A-F23R 23 210 1800 3000 500 3/4″ 1/2″ 3.19
HGP-3A-F25R 25 175 210 1800 2800 500 1.html” 3/4″ 3.24
HGP-3A-F28R 28 175 210 1800 0 500 1.html” 3/4″ 3.35
HGP-3A-F30R 30 175 210 1800 0 500 1.html” 3/4″ 3.45
HGP-3A-F33R 33 140 175 1200 0 500 1.html” 3/4″ 3.6
HGP-3A-F35R 35 125 140 1200 0 500 1.html” 3/4″ 3.71
未經允許不得轉載：如虹精工(廈門)電子科技有限公司 » HGP-3A
