提到UNIVER提升閥，如虹精工(廈門)電子科技有限公司可以了解一下。如虹精工專業(yè)代理銷售UNIVER電磁閥!誠信經(jīng)營!歡迎咨詢,我們將誠摯為您服務.
如虹精工為您提供最新的UNIVER電磁閥詳細參數(shù)、UNIVER電磁閥實時報價、UNIVER提升閥庫存情況等

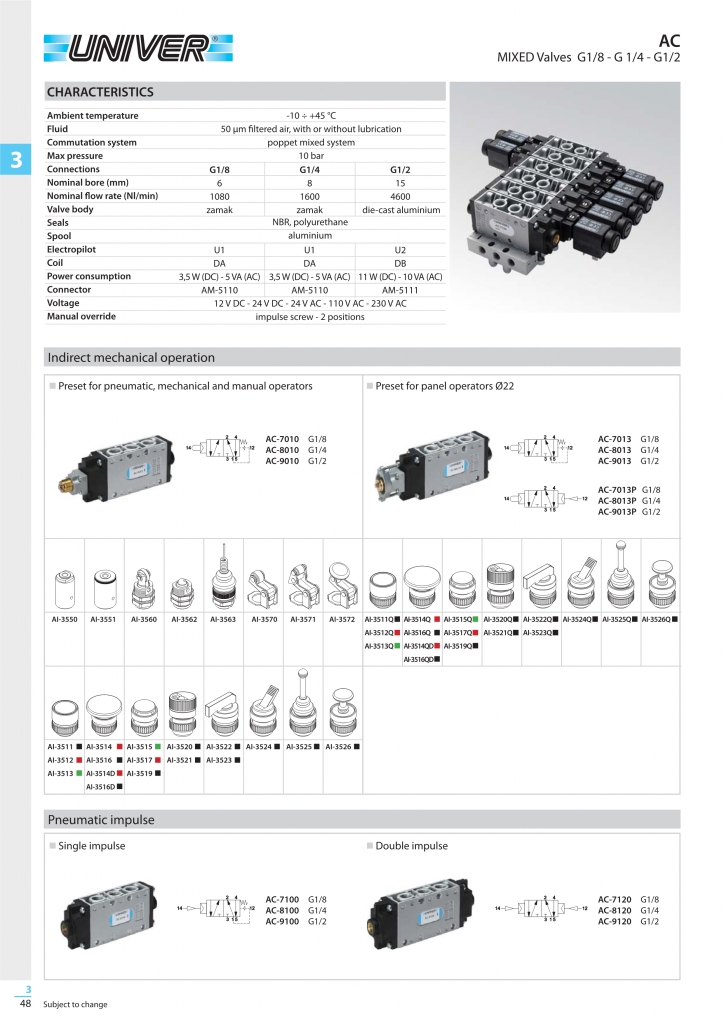

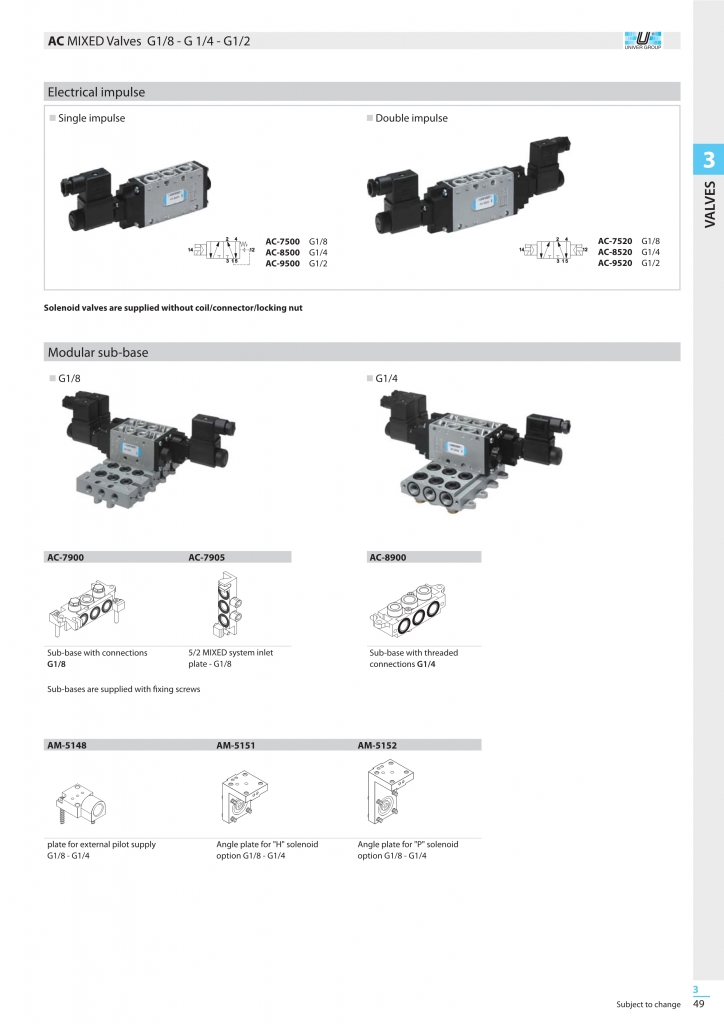

Valves and solenoid valves MIXED 5/2 – G1/8”- G1/4” – G1/2”
| Body | Die-cast aluminium |
| Working pressure | 1÷10 bar |
| Ambient temperature | ?-10 ÷ 45 °C |
| Fluid | filtered air 50?ìm |
| Fluid temperature | -10 ÷ 50 °C |
| Nominal diameter | 6 mm G1/8 |
| w | 8 mm G1/4 |
| w | 15 mm G1/2 |
| Flow rate | 1080 Nl/min. G1/8 |
| w | 1600 Nl/min. G1/4 |
| w | 4600 Nl/min. G1/2 |
| Switching system | mixed |
| Response time | 5÷30 m/s |
| Coils | DA…/DB… series |
UNIVER提升閥常規(guī)型號:AC-7009,AC-7010,AC-7010P,AC-7011,AC-7013,AC-7013P,AC-7019,AC-7020,AC-7100,AC-7120,AC-7121,AC-7500,AC-7500R,AC-7505,AC-7505R,AC-7509,AC-7520,AC-7520R,AC-7521,AC-7522,AC-7522D,AC-7525,AC-7525R,AC-7526,AC-7527,AC-7529,AC-7530,AC-7531,AC-7740,AC-7745,AC-7760,AC-7761,AC-7762,AC-7762D,AC-7765,AC-7766,AC-7769,AC-7900,AC-7905,AC-7980,AC-7985,AC-8010,AC-8013,AC-8019,AC-8020,AC-8100,AC-8120,AC-8121,AC-8500,AC-8505,AC-8509,AC-8520,AC-8521,AC-8522,AC-8523,AC-8525,AC-8526,AC-8527,AC-8529,AC-8530,AC-8531,AC-8740,AC-8743,AC-8745,AC-8760,AC-8761,AC-8762,AC-8765,AC-8900,AC-89080,AC-9010,AC-9013,AC-9100,AC-9120,AC-9121,AC-9500,AC-9520,AC-9521,AC-9522,AC-9980,AC-9985
